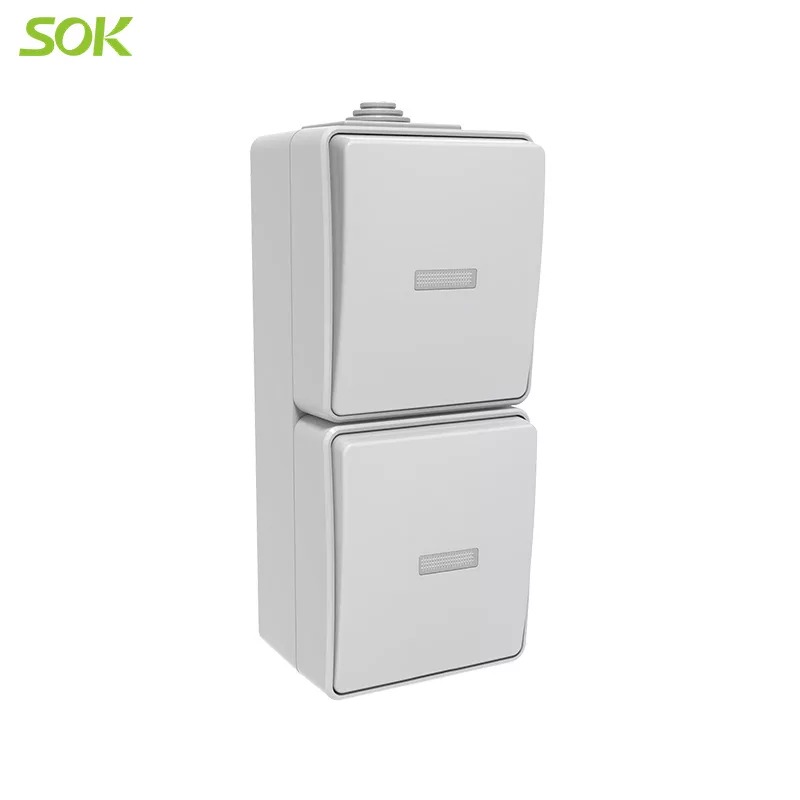

Twin 1 Gang 1 Way Wall Switch with LED Surface Mounting is one of the top sales product in M65 series.
M65 series products use thermoplastic, fire- resistant PC, halogen free material withstand 850℃ Fire resistance test and 2000V Dielectric Strength test to guarantee your safety. M65 series is surface mounted design, simple appearance with light gray color, which is outdoor suitable. Also, dust proof and water proof protected by IP65.
Product details of Twin 1 Gang 1 Way Wall Switch with LED Surface Mounting Vertical Type

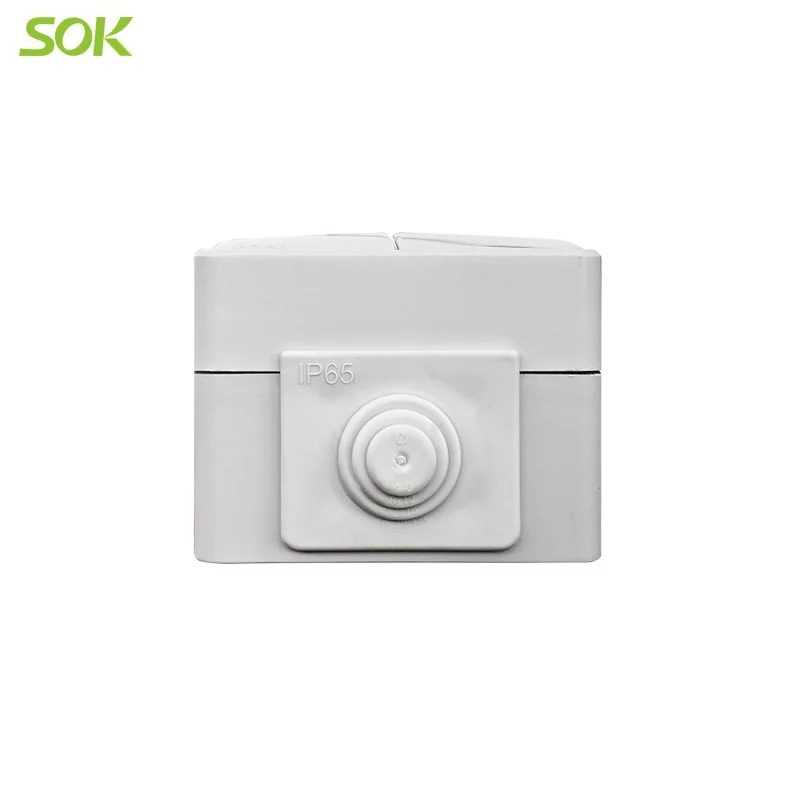

1. Rubber plugs can hold φ4-φ20 spool
2. With IP degree of protection IP65, product has dust proof and water proof function
3. Ambient Temperature for Storageis -20-50℃, Ambient Air Temperature for Operation is -15~45℃
4. Switch and socket have horizontal type and vertical type to choose, free combination for switch and socket
5. Switch and socket have screw terminal and screw-less terminal for options. Screw -less terminal for fast and reliable wiring
6. Quick lock structure, lock or unlock by rotate screw 90 degree
7. It is modular fitting design, free combination of different mechanism to meet any special need
8. Button-Glossy, Enclosure-Mattof surface finish, good for visual effect
9. 2 years warranty for electronic items, tested lifetime at least 40000 times
10. Use PC-UV material can effectively decrease UV influence
11. Use thermoplastic, fire-resistant, halogen freematerial to prevent chemical influence
Specifications of Twin 1 Gang Single Way Wall Switch with LED Surface Mounting Vertical Type
| Main | |
| Type | Wall Switch |
| Series | M65 Series |
| Factory item | M65/L1/1/LED/L1/1/LED/V |
| Brand | SOK |
| Color | Light-Gray |
| Complementary | |
| Device mounting | Surface mounting |
| Switch function | Double 1 way switch with LED |
| Switch number | 2 |
| Combination type | Switch +switch |
| Rated current | 10AX |
| Rated voltage | 250V~ |
| Network frequency | 50/60Hz |
| Actuator | Rocker |
| Surface finish | Button-Glossy, Enclosure-Matt |
| Fixing mode | Screw terminal |
| Type | Vertical type |
| Material | TPE, PP, PC-UV |
| Enclosure Outlet | ∅4-8/8-12/12-16/16-20mm |
| Wire Stripping Length | 10mm |
| Wire Capacity | 1.5-2.5mm² Rigid |
| Material | PP, TPE, PC-UV |
| Dimension(including rubber plug) | 64.0 X 165.0 X 54.2mm |
| Rubber plug depth | 16.4mm |
| Environment | |
| Certification | TUV, CE, Rohs |
| Standard | Euro standard |
| Dielectric Strength | 2000V |
| Fire resistance | 850℃ |
| Ambient Air Temperature for Operation | -15~45℃ |
| Ambient Temperature for Storage | -20-50℃ |
| IP | IP65 |
| IK | 06 |
| Application | Outdoor |
| Life time | |
| Test lifetime | At least 40000 times |
| Warranty | 10 years |
| Packing | |
| Packing | 1pcs/nylon bag, 250*120mm |
| 5pcs/box, 285*190*75mm | |
| 50pcs/carton, 405*395*300mm | |
| G.W | 13.1KGS/CTN |
| More info | |
| MOQ | 3000PCS |
| Payment | TT, L/C |
| Price terms | FOB SHUNDE, C&F |
| Port of loading | SHUNDE, CHINA |
| Place of origin | GUANGDONG JINLI |
| Certificated company | JINLI has ISO9001, ISO14001, OHSAS18000 certification |
| Product ready time | 25~45 days |
| Delivery | By SEA or by AIR |
.jpg)
Product detail
FAQ
Q: Can you do custom made? Price?
A: Yes, glossy switch buttons and surrounds can be customize to other PC color like red, black, cream, gray or painting color like pearl white/yellow, champagne, Black, Brown, Gray, Silver.... Also, painting color can do varnish finish. The price will be negotiated and affordable if the quantity is appreciable. And don't let the price affect your pursuit of ideal atmosphere.
Q: Do products have a Warranty?
A: Yes, SOK offers 10-year worry-free guarantee for all types of switched universal socket outlets, data socket outlets, double pole switch, 2 years for LED dimmer switches... Our efficient sales team and professional technical teams are ready to support your needs.
Q: What kind of service SOK can provide?
A: Presale: Having 20-year exporting experience, we will provide you very effective communication, devoting 100% enthusiasm and patience.
During: We will share you pictures to inform the latest production progress, trace the delivery timely, and help you arrange affordable shipment.
Aftersale: We will provide documents and tracking after shipment and inform you new products timely. And if any problems or questions after sales, please don’t hesitate to contact us and we will give you a satisfactory response. Contact us by TEL: 86-757-25333127/6117/6192/6907 or E-MAIL: export01@jinli.com
Q: How you assure the quality?
A: During the whole production process, our quality control team will strictly inspect each process, from material selecting, material incoming, injection parts selecting, to metal parts punching, to ensure quality and punctual delivery. We also ensure the quality during producing process(line installation, semi automatic installation, automatic installation), packing, storing and loading.
