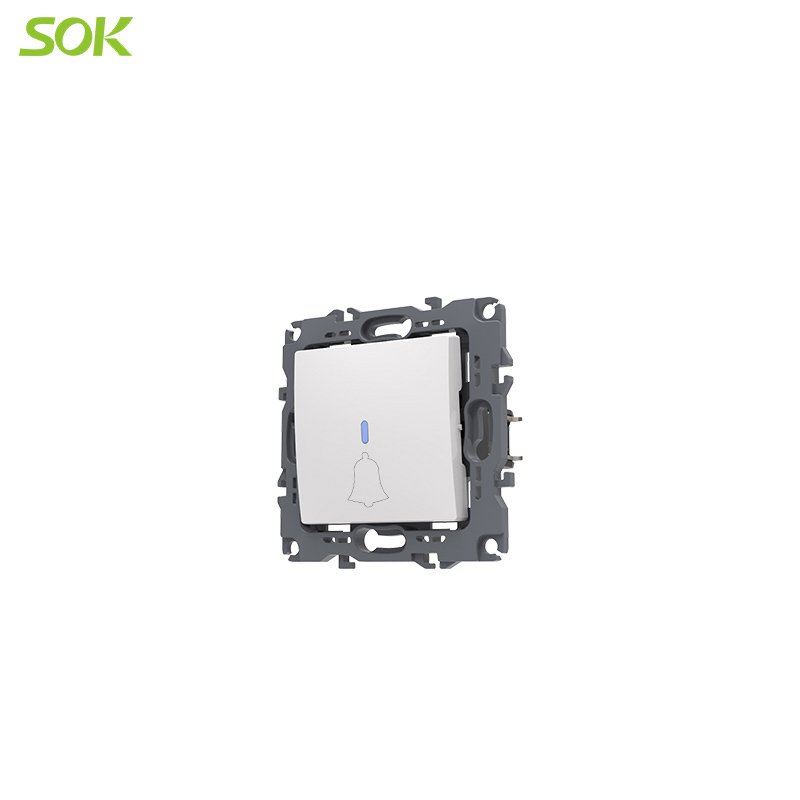

Single Gang 1 Way Push Button with Indicator-Screwless Terminal

From the details to the Single Gang 1 Way Push Button with Indicator-Screwless Terminal overall design, In the S80 series,every place can reflect our attitude. We always put quality first and insist on making products that satisfy our customers. Choose our products, choose to cooperate with us, you will be satisfied.

Product characteristics of Single Gang 1 Way Push Button with Indicator-Screwless Terminal

1.Appearance’s design simple and stylish

The large white switch design makes people feel elegant and noble, and the smooth surface allows consumers to experience comfort during use.

2.High-quality material ensure safety

The K200 silver contact material ensures better conductivity, and the back-housing uses gray flame retardant PC material, which can withstand 850℃ high temperature test.

3.The design of the indicator more intimate

When in the dark places or at night, through the intimate, you can easier and faster find the switch.

4.Two different wiring for your option

Quick wiring and crimping piece wiring are offered







Product Parameters

Model No. S80/L1/L1/D
Product or component type Rocker Switch
Electrical Parameter 10 AX at 250 V AC 50/60 Hz
Device presentation: Complete mechanism, match with S80 series cover
Color White or Customized
Device application Control
Electrical durability 10000 cycles
Opening distance > 3 mm
Dielectric strength 2000 V
Actuator Rocker
Number of modules 2 modules
Connections – terminals Screwless terminals
Clamping connection capacity 0…2.5 mm² for rigid cable(s)
0…2.5 mm² for flexible cable(s)
Material PC (polycarbonate)
Mire stripping length 12.5 mm
Standards EN/IEC 60669-1
Certification TUV,CE,ROHS
IP degree of protection IP20





Product detail























FAQS

Q: What materials your product use?

A: For the plastic parts, we mainly use PC material and in different function parts, we also use PP, PA66, TPE, TPU. For the Hardware parts, we use Phosphor copper, red cooper, brass, and silver in different parts.



Q: Are you a manufacturer or trading company?

A: We are manufacturer with company covers 300,000 square meters with over 1300 employee. Our factory located in Shunde Area, Foshan City, Guangdong Province.



Q: How many years guarantee of your products?

A: We offer 10 years guarantee for non-electronic items, 2 year guarantee for electronic items



Q: What payment terms do you accept.

A: We accept TT and LC, DP or OA can be consider after cooperation. If you wanna know more details, please do not hesitate contacting with our sales manager Winny by E-mail: < a href="mailto:export01@jinli.com">export01@jinli.com.
