Product advantages
1.Appearance’s design simple and stylish
The large white switch design makes people feel elegant and noble, and the smooth surface allows consumers to experience comfort during use.
2.High-quality material ensure safety
The K200 silver contact material ensures better conductivity, and the back-housing uses gray flame retardant PC material, which can withstand 850℃ high temperature test.
3.Rich application scenarios
Schuko power socket with double USB port 3.1A 16A with Screwless Terminal has rich application scenarios, which are applicable to Home decoration, exhibition, hotel, bar, restaurant, etc.
4.Two different wiring for option
Offering screw terminal and screwless terminal for option
Specifications
| Model No.: | S80/16U/USB/2 |
| Product or component type: | USB charger + socket outlet |
| Electrical Parameter | 250v~ 16A |
| 5V DC 3.1A | |
| Device presentation: | Complete product, match with S80 series cover |
| Outlet poles configuration: | 2P + E with shutter |
| Outlet standard description: | Side earth |
| Outlet standard | Schuko |
| Ground lug position | Straight 0° position |
| Number of modules | 1 module |
| Fixing mode | By screws and claws |
| Surface finishing | Glossy |
| Surface treatment | Untreated / Painted |
| Ambient air temperature for storage | -20…60 °C |
| Ambient air temperature for operation | -5…40 °C |
| Protection type | Against short-circuits |
| Battery charge protection | |
| Automatic restart after ground fault or main power loss | |
| Thermal protection | |
| Automatic overload protection | |
| Connections – terminals | Screwless terminals |
| Number of terminals | 3 |
| Clamping connection capacity | 1.5...2.5 mm² for rigid cable(s) |
| 1.5...2.5 mm² for stranded cable(s) | |
| Material | PC (polycarbonate): centre plate |
| PC (polycarbonate): casing | |
| Mire stripping length | 12.5 mm |
| Standards | EN/IEC 60950 IEC 60884-1 |
| Certification | CE， CB, TUV, VDE |
| Service life in hours | 20000 h 15 W |
| IP degree of protection | IP20 |

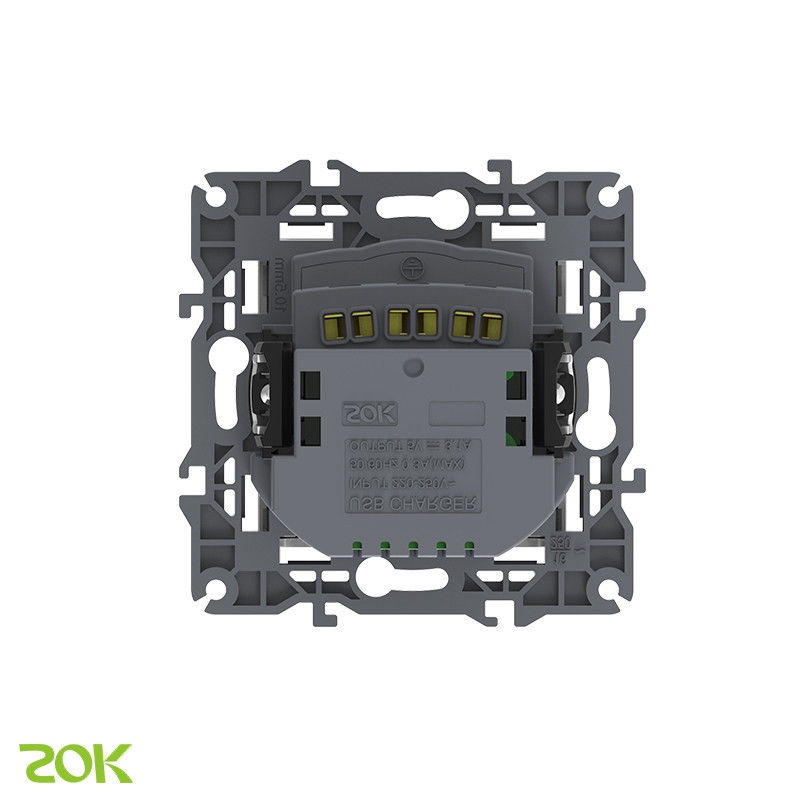

Product detail
FAQS
Q: What materials your product use?
A: For the plastic parts, we mainly use PC material and in different function parts, we also use PP, PA66, TPE, TPU. For the Hardware parts, we use Phosphor copper, red cooper, brass, and silver in different parts.
Q: Are you a manufacturer or trading company?
A: We are manufacturer with company covers 300,000 square meters with over 1300 employee. Our factory located in Shunde Area, Foshan City, Guangdong Province.
Q: How many years guarantee of your products?
A: We offer 10 years guarantee for non-electronic items, 2 year guarantee for electronic items
