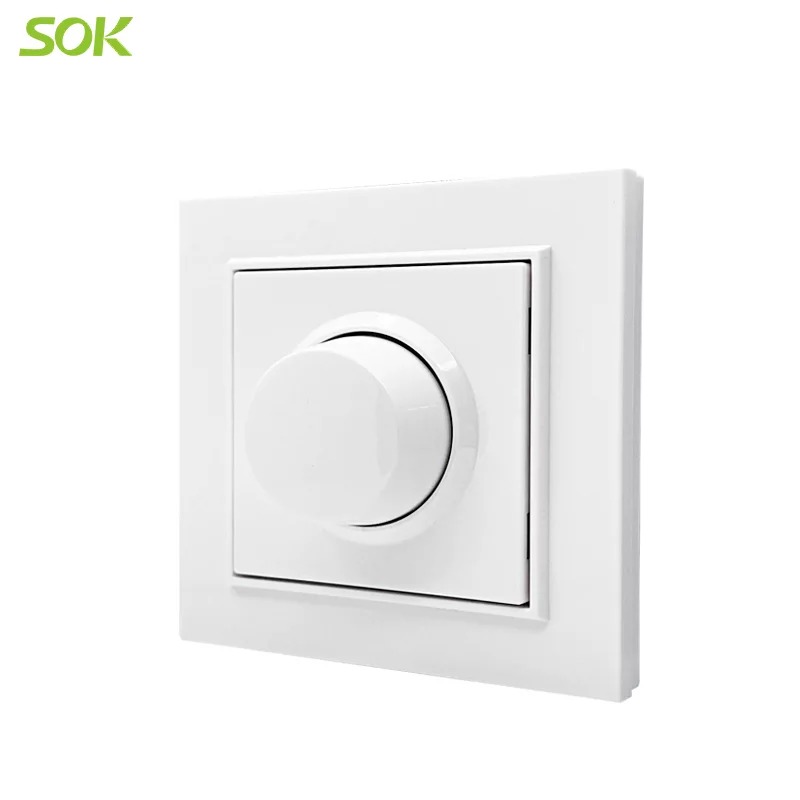

One Gang 200W Dimmer Wall Switch with Hanger with its classic and simple design is very suitable for house decoration, looks very elegant and noble. Its is made of fire -resistant PC withstand 850℃ Fire resistance test and 2000V Dielectric Strength test to guarantee your safety. It is 2 years for warranty with at least 40000 times life time.
Product details of One Gang 200W Dimmer Wall Switch with Hanger
1. Classic design
It has lager push button switch design, easily to touch, make people feel elegant and noble. Also, it is has classic and simple appearance
2. High-quality material ensure safety
Its is made of fire -resistant PC withstand 850℃Fire resistance test and 2000V Dielectric Strength test to guarantee your safety. The L-level terminal of this product uses k200 silver contact material with good conductivity
3. Extensive use of scenarios
Its simple design can be used in many places, including house, hotel, school, bar, exhibition, etc.
4. International certification
S82 Switch obtains TUV & CE certification, S82 Socket has VDE & CE certification.
5. Flexible combination system
With modular fitting design, free combination of different mechanism to meet any special need
6. Utility time
Mechanical product has 10 years for quality assurance, 2 years warranty for electrical switch and socket, tested life time at least 40000 times
7. Available for hanger installation
Hanger can be removed as options
Specification of Product details of One Gang 200W Dimmer Wall Switch with Hanger
| Main | |
| Type | Wall Switch |
| Series | S82 Series |
| Factory item | S82/TG/H200 |
| Brand | SOK |
| Color | PCC- White or customized |
| Complementary | |
| Device mounting | Surface mounting |
| Device presentation | Complete mechanism |
| Switch function | 1 gang 200W dimmer switch |
| Product or component type | Dimmer |
| Device application | Lighting |
| Number of modules | 1 |
| Parameter | 200W, 250V~ |
| Dimming method | Trailing edge dimming |
| Power range | incandescent lamp: 5-200 W |
| Halogen Lamp:5-200 W | |
| Dimmerble LED lamp: 5-200W | |
| Surface finish | Button-Glossy, Enclosure-Matt |
| Fixing mode | Screw terminal |
| Material | TPE, PC, Brass |
| Opening distance | >3MM |
| Wire Stripping Length | 10mm |
| Wire Capacity | 1.5-2.5mm² Rigid |
| Dimension(with Hanger) | 86*86*45mm |
| Hanger screw | ST35*15 |
| Environment | |
| Certification | TUV, CE |
| Standards | EN/IEC 60669-1 |
| Standard | European standard |
| Dielectric Strength | 2000V |
| Fire resistance | 850℃ |
| Ambient Air Temperature for Operation | -15~45℃ |
| Ambient Temperature for Storage | -20-50℃ |
| IP | IP20 |
| IK | 06 |
| Application | House, School, Hotel |
| Life time | |
| Test lifetime | At least 40000 times |
| Warranty | 2 years |
| Packing | |
| Packing | 1pcs/nylon bag, 155*160mm |
| 6pcs/box, 177*150*95mm | |
| 60pcs/carton, 500*314*192mm | |
| More info | |
| MOQ | 3000PCS |
| Payment | TT, L/C |
| Price terms | FOB SHUNDE, C&F |
| Port of loading | SHUNDE, CHINA |
| Place of origin | GUANGDONG JINLI |
| Certificated company | JINLI has ISO9001, ISO14001, OHSAS18000 certification |
| Product ready time | 25~45 days |
| Delivery | By SEA or by AIR |
.jpg)
Product detail
FAQS
Q: What materials your product use?
A: For the plastic parts, we mainly use PC material and in different function parts, we also use PP, PA66, TPE, TPU. For the Hardware parts, we use Phosphor copper, red cooper, brass, and silver in different parts.
Q: Are you a manufacturer or trading company?
A: We are manufacturer with company covers 300,000 square meters with over 1300 employee. Our factory located in Shunde Area, Foshan City, Guangdong Province.
Q: How many years guarantee of your products?
A: We offer 10 years guarantee for non-electronic items, 2 year guarantee for electronic items
Q: What payment terms do you accept.
A: We accept TT and LC, DP or OA can be consider after cooperation. If you wanna know more details, please do not hesitate contacting with our sales manager Winny by E-mail: export01@jinli.com.
