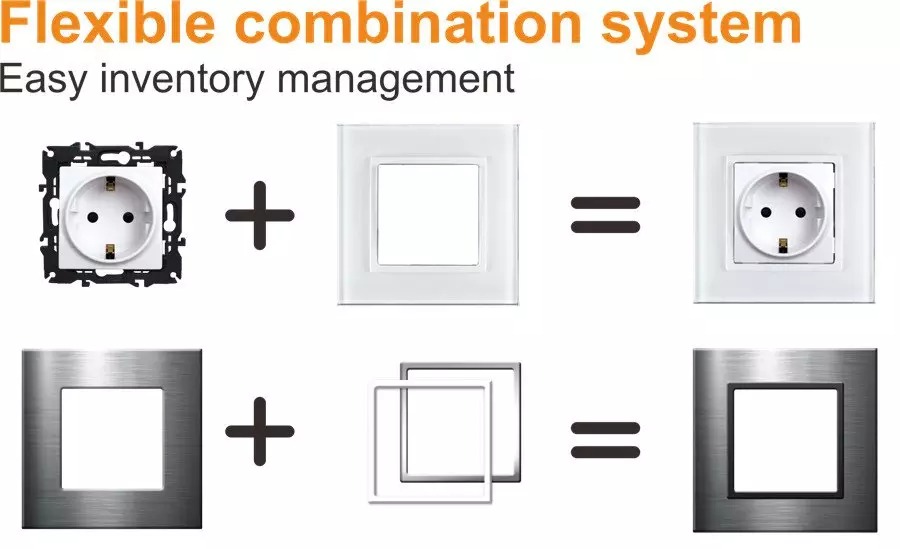

S81 series is a wiring devices combined with remarkable design and broad functions. A flexible, attractive and features-rich wiring device range that comes in a variety of designs and finishes, featuring more than 150 practical functions

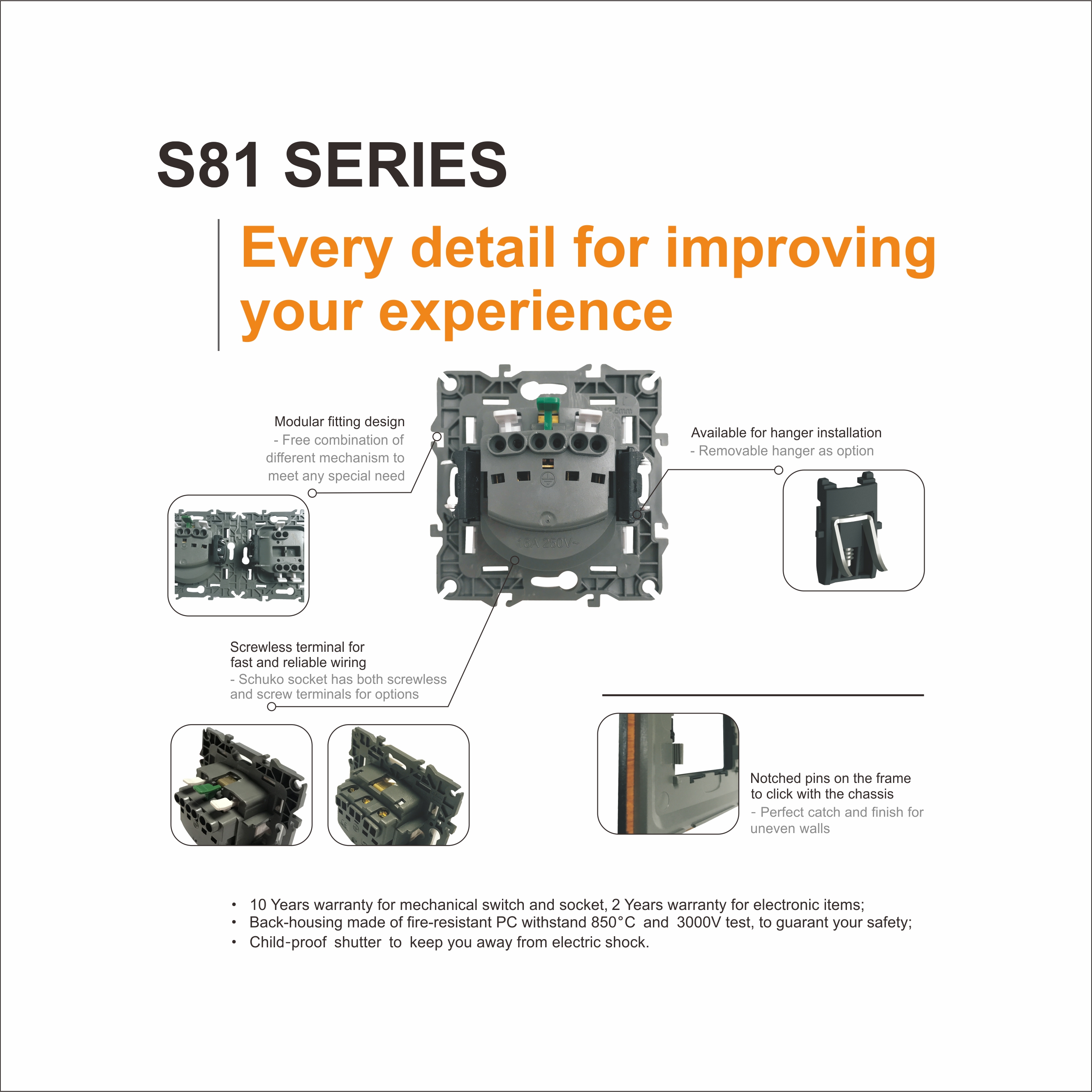

Product Advantages
1 The main parts are make with high quality PC, silver point and brass.
2 The middle frame and back housing are using an integrated design, which makes the strength increase.
3 Unique installation hanger design, easy to disassemble and assemble

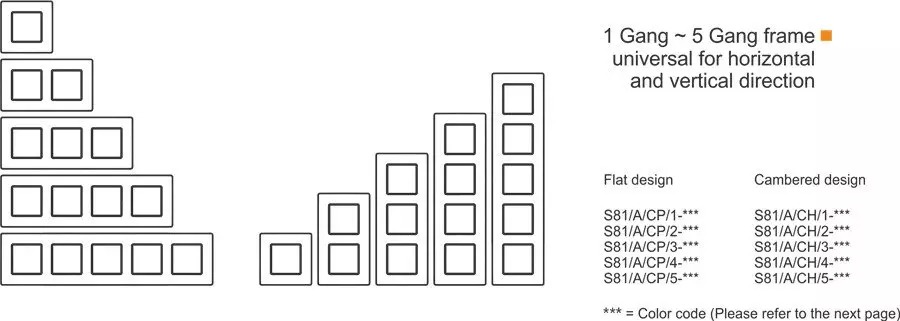

4 Products range is full, include switched, socket, information unit and accessories
5 The switch cover is rich in color to meet the needs of customers.
Product Parameters
| Model No. | S81/CT/B |
| Product or component type | Rocker Switch |
| Electrical Parameter | 10 A at 250 V AC 50/60 Hz |
| Device presentation: | Complete mechanism, match with S81 series cover |
| Color | White or Customized |
| Device application | Control |
| Electrical durability | 10000 cycles |
| Opening distance | > 3 mm |
| Dielectric strength | 2000 V |
| Actuator | Rocker |
| Number of modules | 2 modules |
| Connections – terminals | Screwless terminals |
| Framr material | Transparent PC |
| Back-housing material | Grey flame retardant PC |
| Hanger material | White zinc plating |
| Hanger screw | ST35*15 |
| Mire stripping length | 12.5 mm |
| Standards | EN/IEC 60669-1 |
| Certification | TUV,CE,ROHS |
| IP degree of protection | IP20 |
| Fire resistance | 850℃ |
| Payment | TT, L/C |
| Price terms | FOB SHUNDE, C&F |
| Port of loading | SHUNDE, CHINA |
| Place of origin | GUANGDONG JINLI |
| Certificated company | JINLI has ISO9001, ISO14001, OHSAS18000 certification |
| Product ready time | 25~45 days |
Product detail
FAQ
Q: Can you do custom made? Price?
A: Yes, glossy switch buttons and surrounds can be customize to other PC color like red, black, cream, gray or painting color like pearl white/yellow, champagne, Black, Brown, Gray, Silver.... Also, painting color can do varnish finish. The price will be negotiated and affordable if the quantity is appreciable. And don't let the price affect your pursuit of ideal atmosphere.
Q: Do products have a Warranty?
A: Yes, SOK offers 10-year worry-free guarantee for all types of switched universal socket outlets, data socket outlets, double pole switch, 2 years for LED dimmer switches... Our efficient sales team and professional technical teams are ready to support your needs.
Q: What kind of service SOK can provide?
A: Presale: Having 20-year exporting experience, we will provide you very effective communication, devoting 100% enthusiasm and patience.
During: We will share you pictures to inform the latest production progress, trace the delivery timely, and help you arrange affordable shipment.
Aftersale: We will provide documents and tracking after shipment and inform you new products timely. And if any problems or questions after sales, please don’t hesitate to contact us and we will give you a satisfactory response. Contact us by TEL: 86-757-25333127/6117/6192/6907 or E-MAIL: export01@jinli.com
Q: How you assure the quality?
A: During the whole production process, our quality control team will strictly inspect each process, from material selecting, material incoming, injection parts selecting, to metal parts punching, to ensure quality and punctual delivery. We also ensure the quality during producing process(line installation, semi automatic installation, automatic installation), packing, storing and loading.
