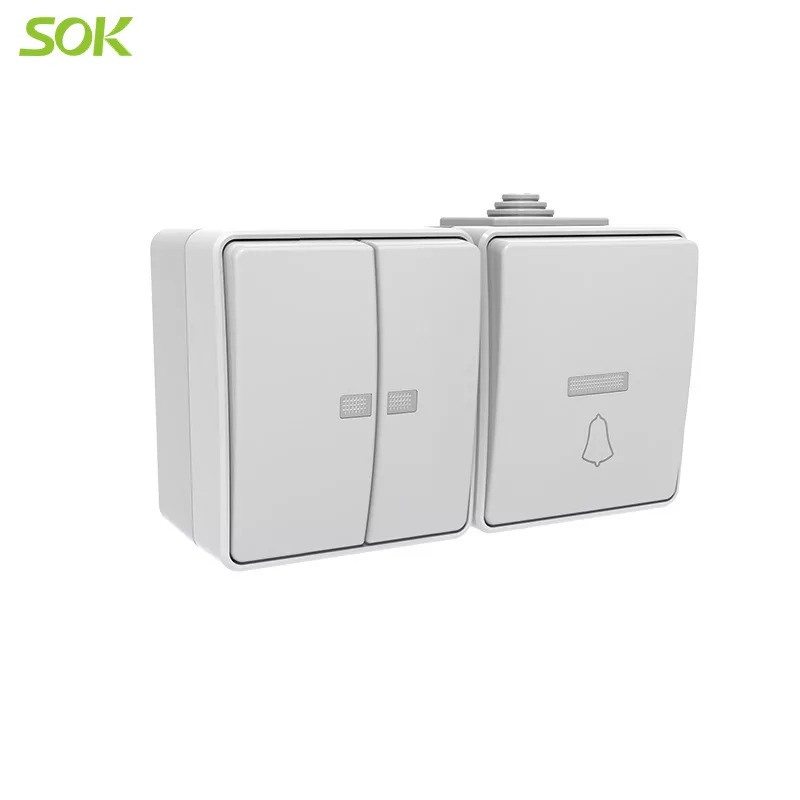

2 Gang 1 Way Switch with LED and Door Bell Light Switch with LED is used high quality TPE, PP, PC-UV material that passed 850℃ Fire resistance Test and 2000VDielectric Strength Test. it has 2 years warranty, tested lifetime at least 40000 times.
Product Advantages of Horizontal Type 2 Gang 1 Way Switch with LED and Door Bell Light Switch with LED Surface Mounted(Screw-less Terminal)
1. Quick lock structure, lock or unlock by rotate the screw 90 degree
2. Use thermoplastic, fire resistance, halogen- free and resistant to numerous chemical influences that passed 850℃Fire resistance Test and 2000VDielectric Strength Test
3. Rubber plugs can hold φ4-φ20 spool
4. 10 years warranty for mechanical item, 2 years warranty for electronic switch and socket, tested lifetime at least 40000 times
5. Have screw terminal and screw-less terminal for options. Switch and socket with screw-less connection technology- quick removal from the housing, and easy to change
6. Have vertical and horizontal type, and free combination for switch or socket
7. Use LED bead with great transmittance
8. Have dust proof and water proof function, protected by IP65
9. Modular fitting design, free combination of different mechanism to meet any special need
Specifications of Horizontal Type 2 Gang 1 Way Switch with LED and Door Bell Light Switch with LED Surface Mounted(Screw-less Terminal)
| Main | |
| Type | Wall Switch |
| Series | M65 Series |
| Factory item | M65Q/L2/1/LED/L1/LB/LED/H |
| Brand | SOK |
| Color | Light-Gray |
| Complementary | |
| Device mounting | Surface mounting |
| Switch function | 2 Gang 1 Way Switch with LED and Door Bell Light Switch with LED |
| Switch number | 2 |
| Combination type | Switch +switch |
| Rated current | 10AX |
| Rated voltage | 250V~ |
| Network frequency | 50/60Hz |
| Actuator | Rocker |
| Local signaling | Led(white) |
| Indicator type | On- Off |
| Surface finish | Button-Glossy, Enclosure-Matt |
| Fixing mode | Screw terminal |
| Material | TPE, PP, PC-UV |
| Enclosure Outlet | ∅4-8/8-12/12-16/16-20mm |
| Wire Stripping Length | 12mm |
| Wire Capacity | 1.5-2.5mm² Rigid |
| Material | PP, TPE, PC-UV |
| Dimension(including rubber plug) | 90.4*54.2*64MM |
| Rubber plug depth | 16.4mm |
| Environment | |
| Certification | TUV, CE, Rohs |
| Standard | Euro standard |
| Dielectric Strength | 2000V |
| Fire resistance | 850℃ |
| Ambient Air Temperature for Operation | -15~45℃ |
| Ambient Temperature for Storage | -20-50℃ |
| IP | IP65 |
| IK | 06 |
| Application | Outdoor |
| Life time | |
| Test lifetime | At least 40000 times |
| Warranty | 2 years |
| Packing | |
| Packing | 1pcs/nylon bag, 205*158mm |
| 5pcs/box, 285*140*95mm | |
| 50pcs/carton, 505*300*300mm | |
| G.W | 13.3KGS/CTN |
| More info | |
| MOQ | 3000PCS |
| Payment | TT, L/C |
| Price terms | FOB SHUNDE, C&F |
| Port of loading | SHUNDE, CHINA |
| Place of origin | GUANGDONG JINLI |
| Certificated company | JINLI has ISO9001, ISO14001, OHSAS18000 certification |
| Product ready time | 25~45 days |
| Delivery | By SEA or by AIR |
.jpg)
Product detail
FAQ
Q: Can you do custom made? Price?
A: Yes, glossy switch buttons and surrounds can be customize to other PC color like red, black, cream, gray or painting color like pearl white/yellow, champagne, Black, Brown, Gray, Silver.... Also, painting color can do varnish finish. The price will be negotiated and affordable if the quantity is appreciable. And don't let the price affect your pursuit of ideal atmosphere.
Q: Do products have a Warranty?
A: Yes, SOK offers 10-year worry-free guarantee for all types of switched universal socket outlets, data socket outlets, double pole switch, 2 years for LED dimmer switches... Our efficient sales team and professional technical teams are ready to support your needs.
Q: What kind of service SOK can provide?
A: Presale: Having 20-year exporting experience, we will provide you very effective communication, devoting 100% enthusiasm and patience.
During: We will share you pictures to inform the latest production progress, trace the delivery timely, and help you arrange affordable shipment.
Aftersale: We will provide documents and tracking after shipment and inform you new products timely. And if any problems or questions after sales, please don’t hesitate to contact us and we will give you a satisfactory response. Contact us by TEL: 86-757-25333127/6117/6192/6907 or E-MAIL: export01@jinli.com
Q: How you assure the quality?
A: During the whole production process, our quality control team will strictly inspect each process, from material selecting, material incoming, injection parts selecting, to metal parts punching, to ensure quality and punctual delivery. We also ensure the quality during producing process(line installation, semi automatic installation, automatic installation), packing, storing and loading.
