Series: W83 Series
Model No.: W83/L2/1/B
Rated Current: 16AX 250V~
Color: White
Warranty: 10 years
Standard: British
Certificates: CB, CE, SASO
W83 Series of light switches features a clean and beautiful appearance with wide rocker button that brings you a different experience. Wide rocker button offers soft-click feeling while using high quality PC material to keep its durability and flame resistance.

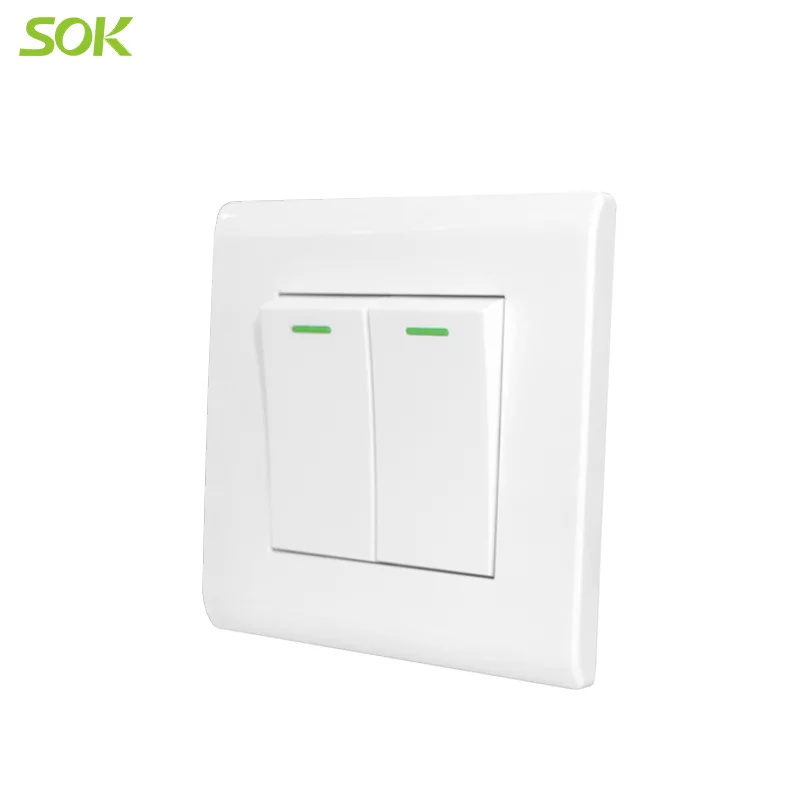

Product Introduction of the 16AX 250V 2 Gang 1 Way Light Switch - White Wide Rocker
1. Made of heat resistant, impact resistant, discoloration corrosion resistant, resistant and green environmental friendly PC material which has ROHS certificate.
2. Soft press with lower clicking sound, Polish finish and Round edges give you a pleasing experience.
3. Provides 2 molds of housing: normal connection and one line connection.
4. Offers improved structure and aesthetics value, giving end-customer great experience.
5. Simple and generousappearance suits for most decoration in commercial, residential, industrial, office building base-box space is limited.
6. Available in Champagne, Black, Dark gray, Silver, Golden etc. for injection or painting.
7. One gang two way switch and double pole switch are available.
8. SOK supplies 10 year guarantee for wide range of wiring device: switch box, modular switches, and 2-year guarantee for motion sensor light switch, light switch timer, electric socket, USB outlet...
9. Certificated with CB CE SASO certificates, our service team can also help you with their professional knowledge.
10. All of our goods will pass several quality inspectionsduring material choosing and incoming, injection and metal punching, producing on lines and packing, storing and loading.
Product Parameter (specification) of the 16AX 250V 2 Gang 1 Way Light Switch - White Wide Rocker
| Main | |
| Type | Wall Switch |
| Series | W83 series |
| Brand Name | SOK |
| Model Number | GENERAL: W83/L2/1/B; ONE LINE: W83/L2/1/BN |
| Color | White |
| Material | PC, PP, Cooper, Sliver |
| Complementary | |
| Rated Voltage | 250V~ |
| Rated Current | 16AX |
| Network Frequency | 50/60Hz |
| Number of Gangs | 2 Gangs |
| Function | Single pole 1 or 2 way switch |
| Actuator | Rocker |
| Device Mounting | Flush/Surface mounted |
| Fixing type | Concealed screws |
| Fixing Mode | By screw M3.5 |
| Fixing Screws Material | Zinc-plated |
| Connections | Screw terminals(pillar terminal)M3.5*6.5mm |
| Contacts Material | Brass |
| Embedding Depth | 20 mm |
| Dimension | 86*86mm |
| Environment | |
| Ambient Air Temperature for Operation | -5~40℃ |
| Flame Retardancy | 850℃ |
| IP degree of protection | IP20 |
| Standards | BS EN 60669-1
IEC 60669 |
| Application | Hotel, Commercial, Industrial, Hospitality, Residential using |
| Contractual Warranty & Tested Lifetime | |
| Tested Lifetime | At least 40,000 times |
| Warranty | 10 years |
| Packing | |
| Packing | 1 pcs/ plastic bag 150*120mm
10pcs/box 185*154*93mm 100pcs/carton 490*320*200mm |
| More Info. | |
| Payment term | T/T, L/C, D/P... |
| MOQ | 3000 pcs |
| Manufacture | Guangdong Jinli |
| Place of Origin | Guangdong, China |
| Certificate | CB, CE, SASO, Jinli factory Successfully certified with ISO9001 & ISO14000 quality system certificate |
Product Details of the 16AX 250V 2 Gang 1 Way Light Switch - White Wide Rocker
GENERAL STRUCTURE PATTERN:
ONE LINE STRUCTURE PATTERN:
Package of the 16AX 250V 2 Gang 1 Way Light Switch - White Wide Rocker
FAQ of the 16AX 250V 2 Gang 1 Way Light Switch - White Wide Rocker
Q: How about your payment terms?
A: 30% Deposit for Preparing Goods, 70% Balance is payable before Shipment. We also offer D/P, T/T, L/C, D/A, Cash, Western Union.
Q: Can you OEM for us?
A: Yes, we can OEM according to the customer’s quantity and package. We can do customization according to your demands and make your brand on packing or even on the product.
Q: What’s your delivery time?
A: Normally it takes 30-40 days for manufacturing. Our well- trained service team could arrange affordable shipment for you after finishing production.
Q: Are you a manufacturer or a trade company?
A: Originally are a company, established in 1985, called Guangdong Jinli Electrical Appliance Co., Ltd., certificated with ISO9001, ISO14001, OHSAS18000 and specialized in switches and sockets for 35 years, owning a laboratory which has got CNAS certification on 2006 and workshops that produces molds and products that are sold to domestic and foreign. Shortly afterwards, we has developed into a group that rapidly expands its business including domestic and exporting business, finance and real estate business. Besides, we have over 20 exporting series among which has obtained CE, TUV, VDE, SASO, CB, GCC, ROHS, Inmetro certificates. And our key benefit is that we do OEM and OEM for 2 Global fortune 500 companies for over 20 years.
