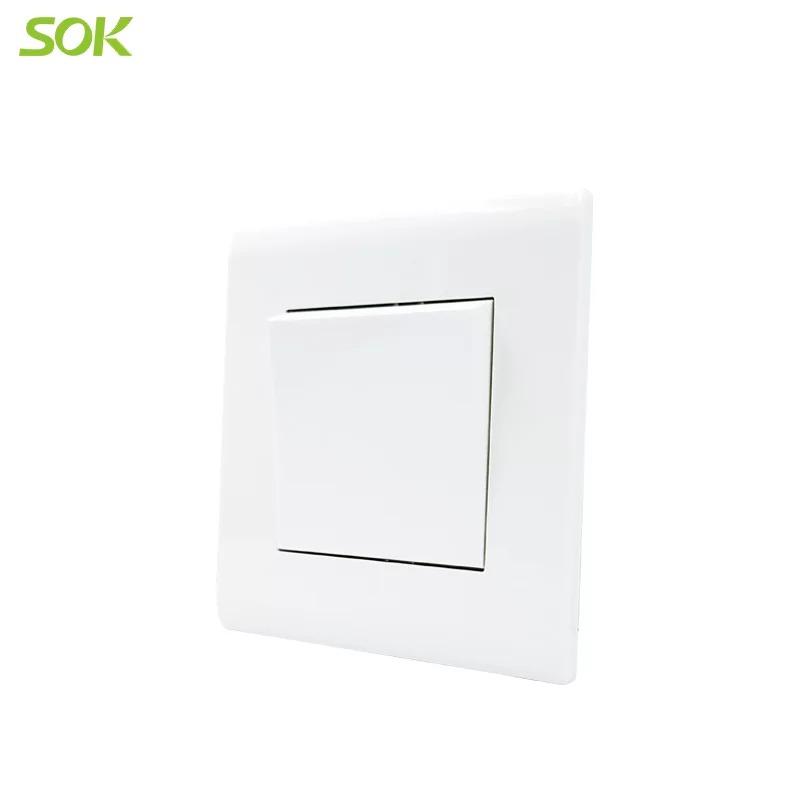

16AX 250V 1 Gang 2 Way Light Switch - White Wide Rocker integrates with aesthetics and modern elements in its decorative design, selecting high strength PC material to provide a backup for 4mm cover. With 35-year history and rich OEM & ODM experience in making switches and socket outlets, no doubt that SOK will not disappoint you.
Product Introduction of the 16AX 250V 1 Gang 2 Way Light Switch - White Wide Rocker
1. 2 way Light Switch features smooth edges and slim front plate that is only 4mm. Glossy switch button can be customizedto other PC color or painting finish.
2. Offers no visible fixing screws design, applying high polymer PC material to support such a slim profile which is durable, fire-resistant, fading-resistant, discoloration-resistant and scratches-resistant.
3. Thanks to the convenient locking of cover plate and chassis and large wiring space, this two way switch features time-saving wiring and installation.
4. Ideal for redecoratedand other applications where mounting-box space is limited.
5. Double pole switch/switched socket available.
6. Provides a wide range of solutions for commercial building, hotels and residential spaces.
7. SOKprovides 10-year worry-free warranty for all types of modular switches, power switch, wall socket, cooker switch...Our friendly and professional sales and efficient technical teams are ready to support your requirements.
8. Product reliability tests all can be done in our company as we own a CNAS certified laboratory, mold manufacturing workshop and 80 engineers in R& D technical team.
9. 108 injection machines, 20 high-speed punch machines, 100 assembly lines, an excellent team for quality control and production capacity over 10 million pieces a month, all this favourable conditions provide fast delivery.
10. Offers flexible payment terms as we have solid financial strength with low asset-liability ratio.
Product Parameter (specification) of the 16AX 250V 1 Gang 2 Way Light Switch - White Wide Rocker
| Main | |
| Type | Wall Switch |
| Series | W86 series |
| Brand Name | SOK |
| Model Number | W86/L1/2/B |
| Color | White |
| Material |
Button,Base cover,Actuator- PC Cover, Chassis- high polymer PC with glass fiber Base- PA nylon |
| Complementary | |
| Rated Voltage | 250V~ |
| Rated Current | 16AX |
| Network Frequency | 50/60Hz |
| Number of Gangs | 1 Gang |
| Function | Single pole 1 or 2 way switch |
| Actuator | Rocker |
| Device Mounting | Flush wall mounted |
| Fixing type | Concealed screws |
| Fixing Mode | By screw M3.5 |
| Fixing Screws Material | Zinc-plated |
| Connections | Screw terminals(pillar terminal)M3*6.5mm |
| Contacts Material | Brass |
| Embedding Depth | 15 mm |
| Dimension | 86*86mm |
| Environment | |
| Ambient Air Temperature for Operation | -5~40℃ |
| Flame Retardancy | 850℃ |
| IP degree of protection | IP20 |
| Standards | BS EN 60669-1 |
| Application | House, Commercial, Industrial, Hospital, Residential using |
| Contractual Warranty & Tested Lifetime | |
| Tested Lifetime | At least 40,000 times |
| Warranty | 10 years |
| Packing | |
| Packing |
1 pcs/ plastic bag 150*120mm 10pcs/box 185*154*93mm 100pcs/carton 490*320*200mm |
| More Info. | |
| Payment term | T/T, L/C, D/P... |
| MOQ | 3000 pcs |
| Manufacture | Guangdong Jinli |
| Place of Origin | Guangdong, China |
| Certificate | CE, CB, SAOSO, Jinli factory Successfully certified with ISO9001 & ISO14000 quality system certificate |
.jpg)
.jpg)
Product detail
FAQ
Q: Can you do custom made? Price?
A: Yes, glossy switch buttons and surrounds can be customize to other PC color like red, black, cream, gray or painting color like pearl white/yellow, champagne, Black, Brown, Gray, Silver.... Also, painting color can do varnish finish. The price will be negotiated and affordable if the quantity is appreciable. And don't let the price affect your pursuit of ideal atmosphere.
Q: Do products have a Warranty?
A: Yes, SOK offers 10-year worry-free guarantee for all types of switched universal socket outlets, data socket outlets, double pole switch, 2 years for LED dimmer switches... Our efficient sales team and professional technical teams are ready to support your needs.
Q: What kind of service SOK can provide?
A: Presale: Having 20-year exporting experience, we will provide you very effective communication, devoting 100% enthusiasm and patience.
During: We will share you pictures to inform the latest production progress, trace the delivery timely, and help you arrange affordable shipment.
Aftersale: We will provide documents and tracking after shipment and inform you new products timely. And if any problems or questions after sales, please don’t hesitate to contact us and we will give you a satisfactory response. Contact us by TEL: 86-757-25333127/6117/6192/6907 or E-MAIL: export01@jinli.com
Q: How you assure the quality?
A: During the whole production process, our quality control team will strictly inspect each process, from material selecting, material incoming, injection parts selecting, to metal parts punching, to ensure quality and punctual delivery. We also ensure the quality during producing process(line installation, semi automatic installation, automatic installation), packing, storing and loading.
