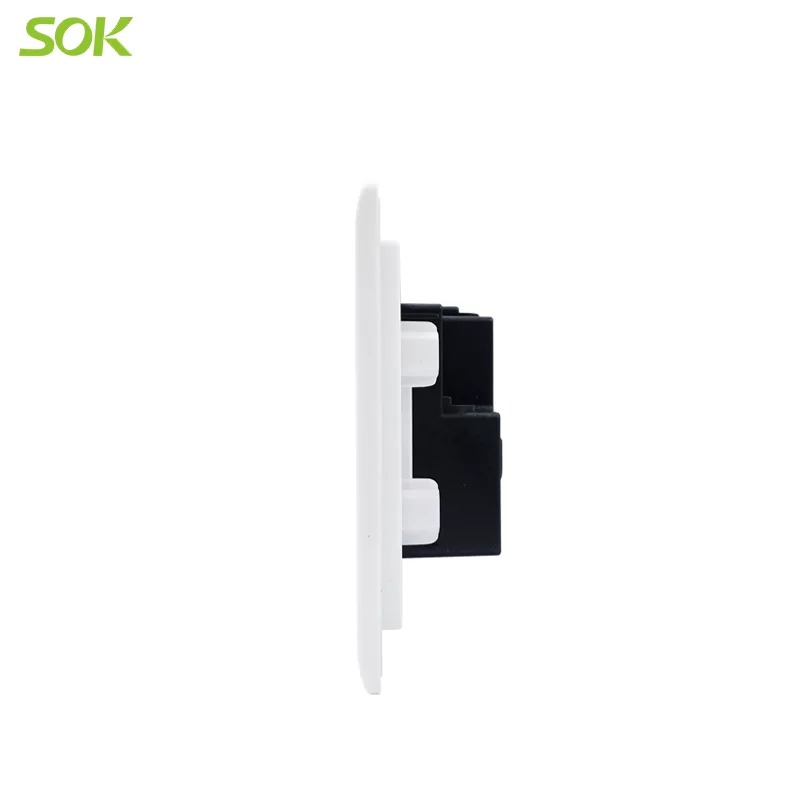

13A 250V Universal Socket Outlet - White 1 Gang features soft corners and smooth surface design. Universal socket outlet can be inserted by a variety of different power plugs. Whether it is a plug for computers, refrigerators, mobile phones, hair dryers, or other plugs from different countries, they can be inserted to universal sockets. CAUTION: Do not insert more than one plug in Universal Socket at the same time to avoid the risk of fire and electric shock.
Product Introduction of the 13A 250V Universal Socket Outlet - White 1 Gang
1. The glossy cover plate is super slim that is only 4mm but strong enough.
2. Applies high polymer PC with glass fiber at chassis to support such a slim profile.
3. Universal outlet suits for different plugs, which is practical and powerful.
4. With children protectiveand dust-proof shutter, this switched universal outlet can effectively avoids accident caused by electric shock. Shutter’s function: three holes must be inserted at the same time to contact with copper pieces, also ideal during decoration.
5. Thanks to a concealed-screws and flat-paneldesign, this single pole switched outlet is easy to clean.
6. Ideal for commercial building,residential places, international hotels, airport, museum and
7. Loading less than one container with trade term FOB SHUNDE is acceptable.
8. Punctualdelivery, in general 30-40
9. With over 1300 staff,9 automatic assembly lines, 108 injection machines, 20 high speed punching machines, 100 manual assembly lines, our monthly capacity can reach over 10 million pieces.
10. SOK provides 10 years warranty for non-electronic items and 2 years guarantee for electronic items like USB outlet with quick charge 2.0/3.1A, dimmer switch, key card switch, thermostat and motion sensor switch.
Product Parameter (specification) of the 13A 250V Universal Socket Outlet - White 1 Gang
| Main | |
| Type | Universal outlet |
| Series | W86 series |
| Brand Name | SOK |
| Model Number | W86/13US |
| Color |
Insert- matt finish white or customized; Cover frame- glossy finish white |
| Material | high polymer PC with glass fiber, PP |
| Complementary | |
| Rated Voltage | 250V~ |
| Rated Current | 13A |
| Network Frequency | 50/60Hz |
| Number of Gangs | 1 Gang |
| Device Mounting | Flush or surface mounted |
| Fixing type | Concealed screws |
| Fixing Mode | By screw M3.5*25mm |
| Fixing Screws Material | Zinc-plated |
| Rivets Material | Brass |
| Connections | Screw terminals(pillar terminal)M4*9mm |
| Contacts Material | Brass |
| Embedding Depth | 20 mm |
| Dimension | 86*86mm |
| Environment | |
| Ambient Air Temperature for Operation | -5~40℃ |
| Flame Retardancy | 850℃ |
| IP degree of protection | IP20 |
| Application | Industrial, Hotel, House, Restaurant, Hospital |
| Contractual Warranty | |
| Warranty | 10 years |
| Packing | |
| Packing |
1 pcs/ plastic bag 150*120mm 10pcs/box 185*154*93mm 100pcs/carton 490*320*200mm |
| More Info. | |
| Payment term | T/T, L/C, D/P, D/A... |
| MOQ | 3000 pcs |
| Manufacture | Guangdong Jinli |
| Place of Origin | Guangdong, China |
| Certificate | ISO9001 & ISO14001 |
.jpg)
Product detail
FAQ
Q: Can you do custom made? Price?
A: Yes, glossy switch buttons and surrounds can be customize to other PC color like red, black, cream, gray or painting color like pearl white/yellow, champagne, Black, Brown, Gray, Silver.... Also, painting color can do varnish finish. The price will be negotiated and affordable if the quantity is appreciable. And don't let the price affect your pursuit of ideal atmosphere.
Q: Do products have a Warranty?
A: Yes, SOK offers 10-year worry-free guarantee for all types of switched universal socket outlets, data socket outlets, double pole switch, 2 years for LED dimmer switches... Our efficient sales team and professional technical teams are ready to support your needs.
Q: What kind of service SOK can provide?
A: Presale: Having 20-year exporting experience, we will provide you very effective communication, devoting 100% enthusiasm and patience.
During: We will share you pictures to inform the latest production progress, trace the delivery timely, and help you arrange affordable shipment.
Aftersale: We will provide documents and tracking after shipment and inform you new products timely. And if any problems or questions after sales, please don’t hesitate to contact us and we will give you a satisfactory response. Contact us by TEL: 86-757-25333127/6117/6192/6907 or E-MAIL: export01@jinli.com
Q: How you assure the quality?
A: During the whole production process, our quality control team will strictly inspect each process, from material selecting, material incoming, injection parts selecting, to metal parts punching, to ensure quality and punctual delivery. We also ensure the quality during producing process(line installation, semi automatic installation, automatic installation), packing, storing and loading.
