The wiring devices of 1 Gang 1 Way Light Switch is combined with remarkable design and broad functions. A flexible, attractive and features-rich wiring device range that comes in a variety of designs and finishes, featuring more than 150 practical functions.

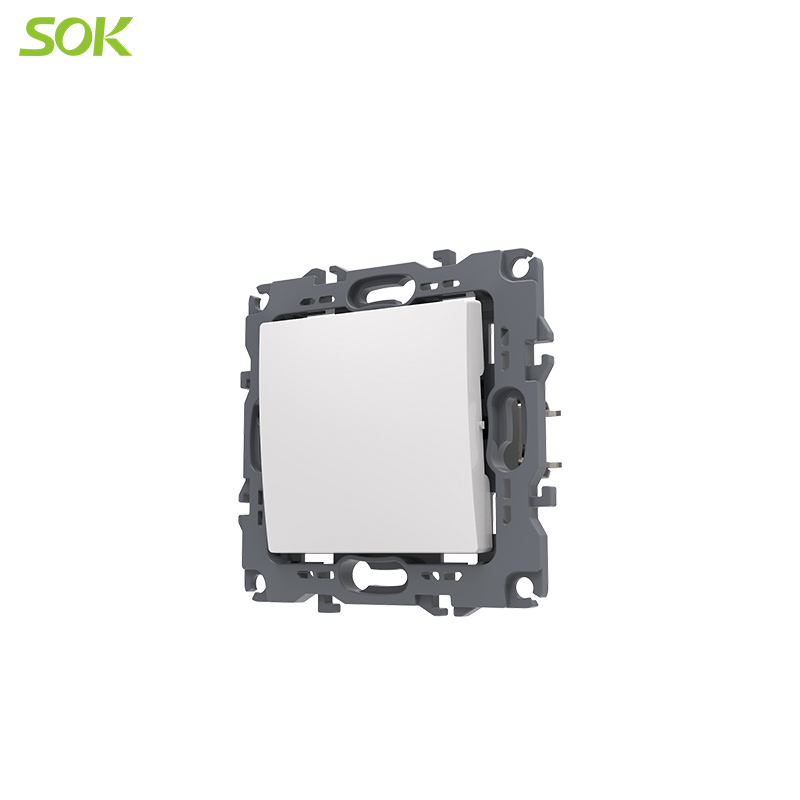

Product characteristic of 1 Gang 1 Way Light Switch with Screwless Terminal
1. The main parts are make with high quality PC, silver point and brass.
2. The middle frame and back housing are using an integrated design, which makes the strength increase.
3. Unique installation hook design, easy to disassemble and assemble
4. Products range is full
5. There are two kinds of wiring mode (screw terminal, screw-less terminal), suitable for many types of conductors.
6. Modular fitting design, easy to connect with different mechanism
7. The switch cover is rich in color to meet the needs of customers.
8.Screwless Terminal and Screw Terminal for your option
Product Parameters
| Product name | 1 Gang 1 Way Light Switch With Screwless Terminal |
| Model No. | S80/L1/1 |
| Product or component type | Rocker Switch |
| Electrical Parameter | 10 A at 250 V AC 50/60 Hz |
| Device presentation: | Complete mechanism, match with S80 series cover |
| Color | White or Customized |
| Device application | Control |
| Electrical durability | 10000 cycles |
| Opening distance | > 3 mm |
| Dielectric strength | 2000 V |
| Actuator | Rocker |
| Number of modules | 2 modules |
| Connections - terminals | Screwless terminals |
| Clamping connection capacity | 0...2.5 mm² for rigid cable(s) |
| 0...2.5 mm² for flexible cable(s) | |
| Material | PC (polycarbonate) |
| Mire stripping length | 12.5 mm |
| Standards | EN/IEC 60669-1 |
| Certification | TUV, CE, CB, VDE |
| IP degree of protection | IP20 |
Product detail
FAQS
Q: What materials your product use?
A: For the plastic parts, we mainly use PC material and in different function parts, we also use PP, PA66, TPE, TPU. For the Hardware parts, we use Phosphor copper, red cooper, brass, and silver in different parts.
Q: Are you a manufacturer or trading company?
A: We are manufacturer with company covers 300,000 square meters with over 1300 employee. Our factory located in Shunde Area, Foshan City, Guangdong Province.
Q: How many years guarantee of your products?
A: We offer 10 years guarantee for non-electronic items, 2 year guarantee for electronic items
Q: What payment terms do you accept.
A: We accept TT and LC, DP or OA can be consider after cooperation. If you wanna know more details, please do not hesitate contacting with our sales manager Winny by E-mail: < a href="mailto:export01@jinli.com">export01@jinli.com.
