1 Gang TV Socket + 1 Gang RJ45 LAN Outlet - White

Series: W50 Series

Model No.: W50/TV/LAN

Color: White

Size: 86X86 mm

Quality Assurance:10 years

Standard: British

Certificates: CB, CE, SASO, GCC





As a supplemental and essential wiring device, this LAN & TV Socket Outlets is the one you’re searching for. Smooth surface, soft edges, glossy finish and pure white color, all these are aesthetic pleasing.



Product Introduction of the 1 Gang RJ45 LAN Socket + 1 Gang TV Outlet - White

1. Features an clean and elegant appearance with a concealed-screwdesign. Also, it’s durable and easier for cleaning.

2. Insert to two holes by slotted screwdriver from the bottom side to disassemble, and lightly clip the surface panel on the chassis.

3. Applies high polymer PC material on cover and frame, which is highly resistant to discoloration, fading, heating, impact, and scratches.

4. Delicatepattern with functions of dustproof, waterproof, prevention of electric shock risk caused by children.

5. Eco-friendly: all material and LAN and TV modular have passed ROHS.

6. Customization: The glossy surface and matt insert can be changed in other painting finishes and injection colors like beige, champagne, dark gray, black, silver, green etc.

7. TEL outlets and fused outlet available.

8. Ideal for Internet cafe, commercial building, residential building, library.

9. Payment terms like L/C, Cash, T/T, D/A, D/P, Western Union provided.

10. We have a well-trained and professional exporting serviceteam, we know different countries requirements of cleaning customs and regulations better than others, as we have exported for over 20 years.



Product Parameter (specification) of the 1 Gang RJ45 LAN Socket + 1 Gang TV Outlet - White

Main
Type TV outlet; LAN socket
Series W50 series
Brand Name SOK
Model Number W50/TV/LAN
Color White
Material High polymer PC
Complementary
Number of Gangs 1 Gang, 2 Gangs available
Device Mounting Flush or surface mounted
Fixing type Concealed screws
Fixing Mode By screw M3.5*25mm
Fixing Screws Material Zinc-plated
Embedding Depth 15 mm
Dimension 86*86mm
Environment
Flame Retardancy 850℃
IP degree of protection IP20
Application Industrial, Hotel, Club, Restaurant, Hospital, Residential
Contractual Warranty
Warranty 10 years
Packing
Packing

1 pcs/ plastic bag 150*120mm

10pcs/box 185*154*93mm

100pcs/carton 490*320*200mm

More Info.
Payment term T/T, L/C, D/P, D/A...
MOQ 3000 pcs
Manufacture Guangdong Jinli
Place of Origin Guangdong, China
Certificate ROHS, CB, CE, SASO, GCC, ISO9001 & ISO14000



Product Features and Application of the 1 Gang RJ45 LAN Socket + 1 Gang TV Outlet - White

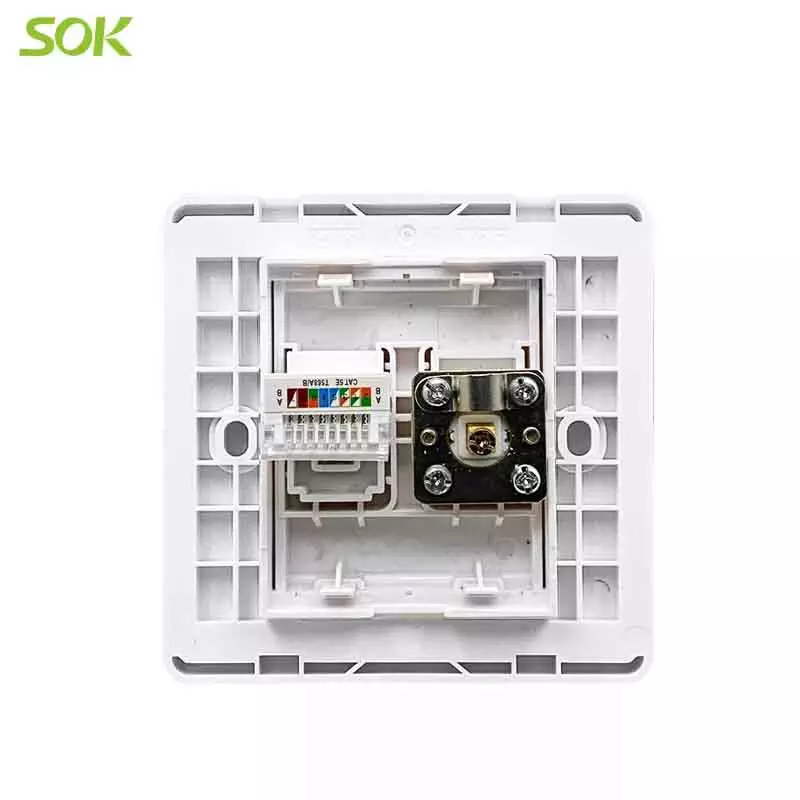

Product Details of the 1 Gang RJ45 LAN Socket + 1 Gang TV Outlet - White



Assembling Instruction:





FAQ of the 1 Gang RJ45 LAN Socket + 1 Gang TV Outlet - White



Q: How to wire LAN socket?



A: 1. Introduction of wiring principle : In most of the current households, there are two types of twisted pair-wiring, T568A T568B. The modes or sequences of wiring are below:



T568A wiring sequence is: white green, green, white orange, blue, white blue, orange, white brown, brown

T568B wiring sequence is: white orange, orange, white green, blue, white blue, green, white brown, brown



2. Step1: use a wire stripping tool to strip the ends of the twisted pairs carefully, for about 12-15 millimeters.

Step 2: press the twisted pairs into the wire rod in advance, and then disassemble the wire pairs and select the wiring mode that we prefer.

Step 3: press all the threads tightly into each corresponding slot, and then use scissors to cut off the excess threads. The last thing is just to install the LAN module on the frame.



Q: Will LAN socket outlet affect network speed?



A: Yes, if the internet module material of outlet is not good, it will have a great impact on the network. SOK’s LAN sockets ensure you high quality and 10-year warranty with ROHS certification and 100% inspection.
